6-FAM phosphoramidite [5′-Fluorescein phosphoramidite]

Fosforamidita de 6-FAM [fosforamidita de 5′-fluoresceína] *CAS 204697-37-0*

Descripción

Hay varias formas de marcar un oligonucleótido con fluoresceína. La elección de la etiqueta se diversifica aún más, dependiendo de los requisitos espectrales. La fosforamidita de 5′-fluoresceína-CE, derivada del isómero único 6-carboxifluoresceína, la fosforamidita de 5′-hexaclorofluoresceína-CE (HEX) y la fosforamidita de 5′-tetraclorofluoresceína-CE (TET) se pueden usar para marcar eficientemente un oligonucleótido en el 5 ‘-fin. El etiquetado del extremo 3′ de un oligo con fluoresceína se puede lograr utilizando CPG de 3’-fluoresceína. La escisión estándar y la desprotección con hidróxido de amonio liberan el oligo marcado con fluoresceína cuando se usa cualquiera de estos soportes.

CatalogoProductoPresentación
AAT-60166-FAM phosphoramidite [5′-Fluorescein phosphoramidite]100 µmoles
AAT-60176-FAM phosphoramidite [5′-Fluorescein phosphoramidite]10×100 µmoles

Importante, Solo para uso en investigación (RUO). Almacenamiento: Congelar  (< -15 °C), Minimizar la exposición a la luz

Propiedades fisicas

Peso Molecular 843.94
DisolventeMeCN

Calculadora

Preparación de la solución de stock común.
Volumen de MeCN necesario para reconstituir la masa específica de fosforamidita de 6-FAM [fosforamidita de 5′-fluoresceína] CAS 204697-37-0 a la concentración dada. Tenga en cuenta que el volumen es solo para preparar la solución madre. Consulte el protocolo experimental de muestra para conocer los buffers experimentales/fisiológicos apropiados.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM118.492 µL592.459 µL1.185 mL5.925 mL11.849 mL
5 mM23.698 µL118.492 µL236.984 µL1.185 mL2.37 mL
10 mM11.849 µL59.246 µL118.492 µL592.459 µL1.185 mL

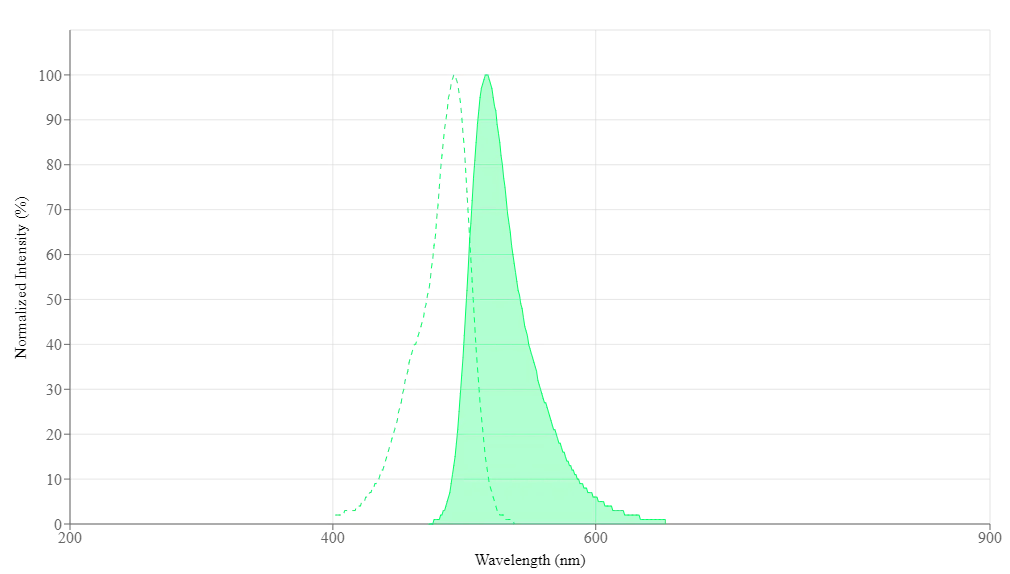

Espectro

Abrir en Advanced Spectrum Viewer

Propiedades Espectrales

Factor de corrección (260 nm)0.32
Factor de corrección (280 nm)0.178
Coeficiente de extinción (cm -1 M -1)83000
Excitación (nm)493
Emisión (nm)517

Imagen

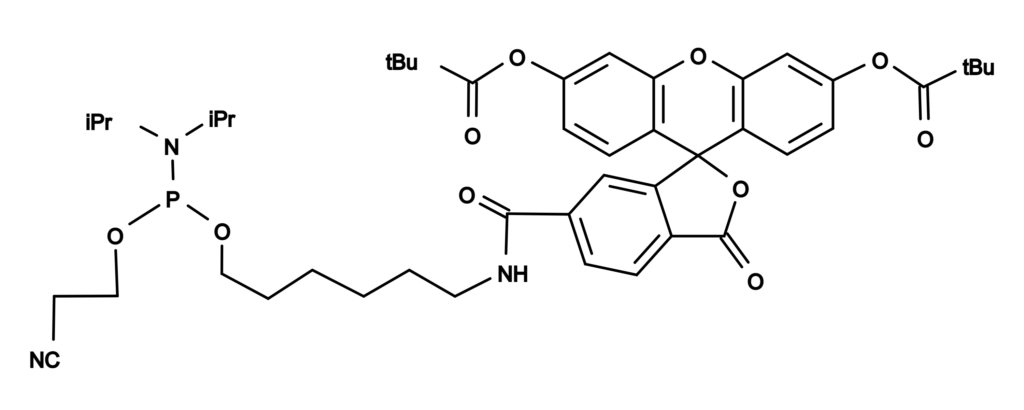

Figura 1. Estructura quimica de 6-FAM phosphoramidite [5′-Fluorescein phosphoramidite] *CAS 204697-37-0*

Productos Relacionados

NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)Correction Factor (260 nm)Correction Factor (280 nm)
5(6)-FAM [5-(and-6)-Carboxyfluorescein] *CAS 72088-94-9*493517830000.320.178
6-FAM, SE [6-Carboxyfluorescein, succinimidyl ester] *CAS 92557-81-8*493517830000.320.178
6-FAM Azide493517830000.320.178
6-FAM Alkyne493517830000.320.178
6-Fluorescein phosphoramidite4985178000010.320.275
6-TET phosphoramidite [5′-Tetrachlorofluorescein phosphoramidite] *CAS#: 877049-90-6*521542730000.13
6-HEX phosphoramidite [5′-Hexachlorofluorescein phosphoramidite]533559730000.15
6-JOE Phosphoramidite520545750001
FAM-xtra™ Phosphoramidite493517830000.320.178

Otros Productos Relacionados

5-FAM [5-Carboxyfluorescein] *CAS 76823-03-5*
6-FAM [6-Carboxyfluorescein] *CAS 3301-79-9*
5(6)-FAM, SE [5-(and-6)-Carboxyfluorescein, succinimidyl ester] *CAS 117548-22-8*
5-FAM, SE [5-Carboxyfluorescein, succinimidyl ester] *CAS 92557-80-7*
5-SFX [5-FAM-X, SE] *CAS 148356-00-7*
5(6)-FAM ethylenediamine
5-FAM ethylenediamine
5(6)-FAM cadaverine
5-FAM cadaverine
5-FAM Azide
5-FAM Alkyne
FMOC-Asp(5/6-FAM)-OH
FMOC-Asp(5-FAM)-OH
FMOC-Glu(5/6-FAM)-OH
FMOC-Glu(5-FAM)-OH
FMOC-Lys(5/6-FAM)-OH
FMOC-Lys(5-FAM)-OH *CAS 1242933-88-5*
5-FAM-YVAD-FMK
Fluorescein aldehyde [5-FAM aldehyde]

Referencias

Sequence-specific, self-reporting hairpin inversion probes
Authors: Browne KA., undefined
Journal: J Am Chem Soc (2005): 1989

Modified oligonucleotides containing lithocholic acid in their backbones: their enhanced cellular uptake and their mimicking of hairpin structures
Authors: Kim SJ, Bang EK, Kwon HJ, Shim JS, Kim BH.
Journal: Chembiochem (2004): 1517

Synthesis of HyBeacons and dual-labelled probes containing 2′-fluorescent groups for use in genetic analysis
Authors: Dobson N, McDowell DG, French DJ, Brown LJ, Mellor JM, Brown T.
Journal: Chem Commun (Camb) (2003): 1234

Reduced aggregation and improved specificity of G-rich oligodeoxyribonucleotides containing pyrazolo[3,4-d]pyrimidine guanine bases
Authors: Kutyavin IV, Lokhov SG, Afonina IA, Dempcy R, Gall AA, Gorn VV, Lukhtanov E, Metcalf M, Mills A, Reed MW, S and ers S, Shishkina I, Vermeulen NM.
Journal: Nucleic Acids Res (2002): 4952

Diels–Alder bioconjugation of diene-modified oligonucleotides
Authors: Hill KW, Taunton-Rigby J, Carter JD, Kropp E, Vagle K, Pieken W, McGee DP, Husar GM, Leuck M, Anziano DJ, Sebesta DP.
Journal: J Org Chem (2001): 5352

Recovery of an oligonucleotide using silver ions immobilized onto paramagnetic particles
Authors: Ramirez-Vick JE, Garcia AA, Lee J.
Journal: Prep Biochem Biotechnol (1998): 243

Simultaneous detection of several oligonucleotides by time-resolved fluorometry: the use of a mixture of categorized microparticles in a sandwich type mixed-phase hybridization assay
Authors: Hakala H, Virta P, Salo H, Lonnberg H.
Journal: Nucleic Acids Res (1998): 5581

Synthesis and characterization of a new 5-thiol-protected deoxyuridine phosphoramidite for site-specific modification of DNA
Authors: Meyer KL, Hanna MM.
Journal: Bioconjug Chem (1996): 401

Synthesis and characterisation of fluorescent oligonucleotides. Effect of internal labelling on protein recognition
Authors: Hagmar P, Bailey M, Tong G, Haralambidis J, Sawyer WH, Davidson BE.
Journal: Biochim Biophys Acta (1995): 259

Characterization of endonucleolytic activity of HIV-1 integrase using a fluorogenic substrate
Authors: Lee SP, Censullo ML, Kim HG, Knutson JR, Han MK.
Journal: Anal Biochem (1995): 295
